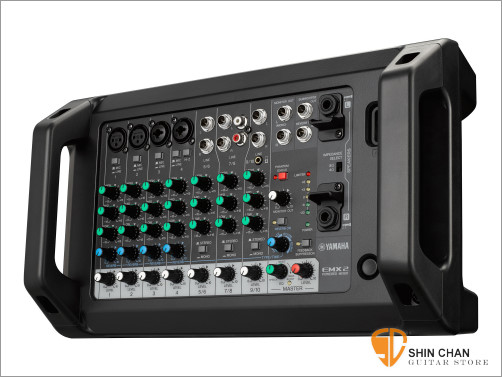

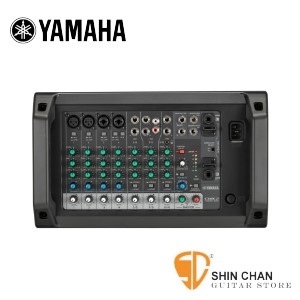

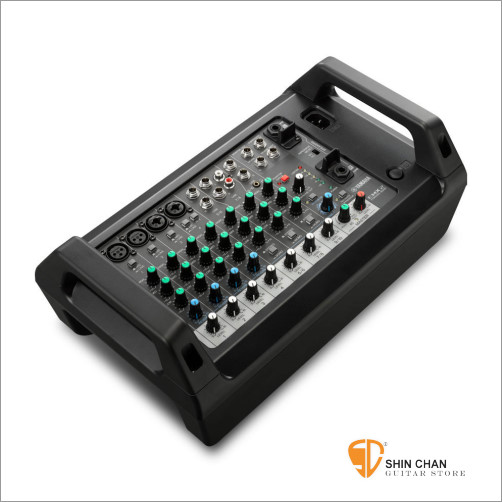

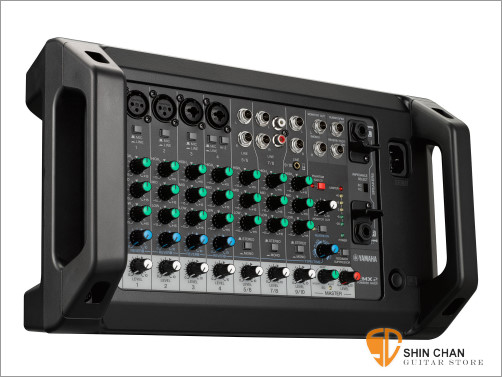

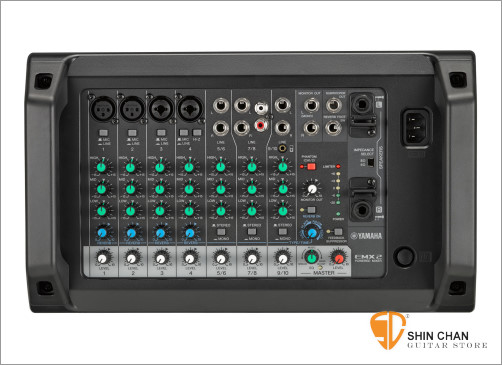

YAMAHA EMX2 10軌功率混音座 500瓦【EMX-2/Powered Mixer】
系統編號:A00010137
YAMAHA EMX2 10軌功率混音座 500瓦【EMX-2/Powered Mixer】
89
編號:EMX2 A14000S
定價:NT $22100
特價:NT $17000
※此商品不直接參與全館折扣活動
YAMAHA EMX2 10軌功率混音座 500瓦【EMX-2/Powered Mixer】
載入中,請稍侯...

YAMAHA EMX2 10軌功率混音座 500瓦








概述

EMX2既是混音器和功率放大器,只需要加上喇叭和麥克風就擁有一個全功能的音響系統。這很容易讓新手,甚至是第一次使用的用戶以前沒有的音響體驗輕鬆配置自己的擴音系統。EMX2集所有功能於一身的設計理念確保只要插上電源線,然後作簡單的,直覺的連接,任何人都可以當自己的音響師。

最高的行動能力

EMX2



雖然只是一個混音機和一台擴大機,EMX2的尺寸(37.5厘米點¯x22厘米×15厘米/14.8“×5.8”×8.7“)是出奇的恰好,因此即使在小汽車的行李箱中也很容易與喇叭搭配在一起。輕量化便攜的機身還具有高品質的把手,當速度也要考慮時,將有利於任何人建立一套PA來使用。

適合演講、樂團以及DJ活動

EMX2



EMX2的靈活連接能力,讓您可以使用多達4個麥克風與樂器一起使用歌唱,或是從行動播放設備BGM或錄製的音樂製作一起講話或播音。這裝置還配備幻象電源和高阻抗輸入功能讓您使用高性能的電容式麥克風或直接連接吉他,無需任何外部裝備。而由於EMX2也是一個擴大機,可以輕鬆連接被動喇叭來組成您的音響系統,甚至可以透過一個單獨連接的Yamaha DXS系列的主動式超低音喇叭,用來在PA系統需要更加突出的超低音的性能應用,例如在小型俱樂部或戶外場地DJ活動。

4組Yamaha的殘響添加氣氛

EMX2



幾十年來,Yamaha的音響專家一直在為我們的使用者的聲樂和樂器表演開發高品質的殘響效果器來增加氣氛及感觸。EMX2設計有最常用和實用的殘響運算模型,使用單一個旋鈕很容易地選擇並控制四個效果之一的深度; HALL模仿一個寬敞的大廳,PLATE是屬於比較經典的聲音特性,ROOM增加了一個更親密的聲音性能,而ECHO讓樂器或人聲更有專業的優勢,以及讓卡拉OK有吸引力。

積極的回授處理功能

EMX2



有幾件事情對現場表演或演講活動時很不舒服的負面影響,像是突然的回授或是常常令人尷尬的嘯叫。還好EMX2配備了採用了獨特的Yamaha數位技術,一個按鈕開關的回授抑制器就可以不間斷地消除惱人的回授。

塑造您的聲音

EMX2



為了添加混音最後的格調,EMX2的單旋鈕主EQ™讓您輕易一個旋鈕就優化EQ設定。SPEECH的設定有限的低音是針對會議,研討會,或是要清晰、明確的演說會議; MUSIC提供更平衡的聲音給量身定做的清音或樂團表演;BASS BOOST是適合強調優先低音的DJ表演或音樂播放。

Flexible Setupfor a Diverse Range of Applications

EMX2



Using an optional rack-mount kit, you can seamlessly add the EMX2 to a rack configuration or and existing installed application. You can even mount the EMX2 on a microphone stand using a simple mic-stand adaptor, giving you quick, convenient, manual control of all the relevant features.

Applications

EMX2





Community Center/ Small Hall/ Office Space

EMX2



- The EMX2's lightweight and portable design make it very easy to carry and particularly useful for sudden, emergency meetings, planned presentations, or seminars.
- The onboard feedback suppressor can automatically cancel out the uncomfortable howling that convention rooms or small halls are often prone too, giving first-time users the added confidence of worry-free setup.
- The 1-Knob Master EQ™ features a SPEECH setting for EQ optimized for speaking engagements with a simple turn of the knob.
- Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.

Small Chapel, or House of Worship

EMX2



- The EMX2's lightweight and portable design make it very easy to carry and particularly useful for impromptu services.
- Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
- The onboard feedback suppressor can automatically cancel out uncomfortable howling giving first time users the confidence they need to manage their audio.
- EMX2's optional rack-mount kit lets you seamlessly add the EMX2 to a rack configuration or an existing installed application.

For DJ's at Parties or Small Outdoor Events

EMX2



- The EMX2's lightweight and portable design make it very easy to carry and particularly useful for parties or DJ events when a fast and easy setup is desired.Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
- The onboard feedback suppressor can automatically cancel out uncomfortable howling, for a worry-free performance.
- The EMX2's 1-Knob Master EQ™ can help bring out the best in your bass with the optimized Bass Boost setting.
- For more bass-heavy performances, the EMX2 comes equipped with a dedicated port for fast and easy connection to a Yamaha DXS Series powered subwoofer.

Band Performance With Vocal ,Keyboard, Guitar, and Bass

EMX2



- The EMX2's lightweight and portable design make it very easy to carry and particularly useful for shows where a speedy set up time is a factor.
- Phantom power lets users connect high-quality condenser mics to add a more professional edge to their performances.
- High-impedance input capability allows users to connect guitars or basses directly into the EMX2.
- Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
- The onboard feedback suppressor can automatically cancel out uncomfortable howling, for a worry-free performance.
- Choose from the EMX2's four reverb algorithms and add more atmosphere to your sound with the turn of a single knob.
- 1-Knob Master EQ™ lets you shape the sound of your final mix with selectable 3-band EQ settings, including MUSIC which is optimized for band performances.

Karaoke

EMX2



Outline

I/O Inputs TOTAL 10ch : Mono (MIC/LINE):4, Stereo(LINE):3

概述

輸出入介面 仿真電源 CH1, 2 : +30 V

Outline

I/O Outputs SPEAKERS [L, R], MONITOR OUT [L,R], SUBWOOFER OUT

概述

輸入/輸出 控制與其他 FOOT SW : Effect Mute on/off

Outline

Bus Stereo: 1, Effect: 1
Input Channel Function PAD 26 dB (CH1-4)
Hi-Z Supported (CH4)
EQ HIGH 8kHz +15dB / -15dB
EQ MID 2.5kHz +15dB / -15dB
EQ LOW 100Hz +15dB / -15dB
On-board processors DSP SPX Algorithm Reverb 4 programs, MASTER EQ (SPEECH to MUSIC), Feedback suppressor

概述

快取擴大機 最大輸出功率@4ohms 1kHz THD+N less than 10% (CEA2006) : 250 W + 250 W, 1kHz THD+N less than 1% : 110 W + 110 W

Outline

On-board amplifiers Maximum output power @8ohms 1kHz THD+N less than 10% (CEA2006) : 170 W + 170 W, 1kHz THD+N less than 1% : 110 W + 110 W
Level Meter 6points (-20, -6, 0 , +3, +6, LIMITER)

General specifications

Frequency response Input to SPEAKERS : +1 dB/-4 dB (40Hz to 20kHz), Input to MONITOR OUT : +0.5 dB/-1.5 dB (20Hz to 20kHz) , refer to the nominal output level @ 1 kHz

一般規格

全諧波失真 Input to SPEAKERS : 0.2 % @ 13.8 W (40Hz to 20kHz), 0.4 % @ 23.2W (1kHz), Input to MONITOR OUT : 0.05 % @ +10 dBu (20Hz to 20kHz) 0.009 % @ +20 dBu (1kHz), (THD+N, Measured with 22 kHz LPF)
哼雜聲位準 平衡式輸入噪聲 -115 dBu
哼音 & 雜訊階級 殘差輸出雜訊 Input to SPEAKERS : -68 dBu (40Hz to 20kHz, MASTER: min), Input to MONITOR OUT : -99 dBu (20Hz to 20kHz, MONITOR: min)
二重像 (交互聲) -80 dB (1 kHz, Measured with 1 kHz band pass filter)
電路保護 載入保護 DC-fault
放大器保護 Over heat protection, Over current protection
電源需求 AC 100-240V, 50Hz/60Hz
耗電量 35W (Idle) / 90W (1/8 Power)
尺寸 375 mm (14.8")
147 mm (5.8")
220 mm (8.7")
淨重 4.2 kg (9.3 lbs.)
附件 Owner’s Manual, Technical Specifications, Power Cord (2m)

General specifications

Options Foot Switch: FC5, Mic Stand Adaptor: BMS-10A, Rack mount kit RK-EMX2
Others Operating Temperature : 0 to +40℃

- The EMX2's lightweight and portable design make it ideal for fast and convenient setup at a party or karaoke event.
- Phantom power lets users connect high-quality condenser mics to add a more professional edge to their performances.
- The onboard 1-knob reverb features 4 different reverb effects, including an ECHO/ delay—ideal for Karaoke enthusiasts.
- The onboard feedback suppressor can automatically cancel out uncomfortable howling, for fun,worry-free Karaoke.
- The EMX2 can be mounted easily on a microphone stand using a simple mic-stand adaptor.
